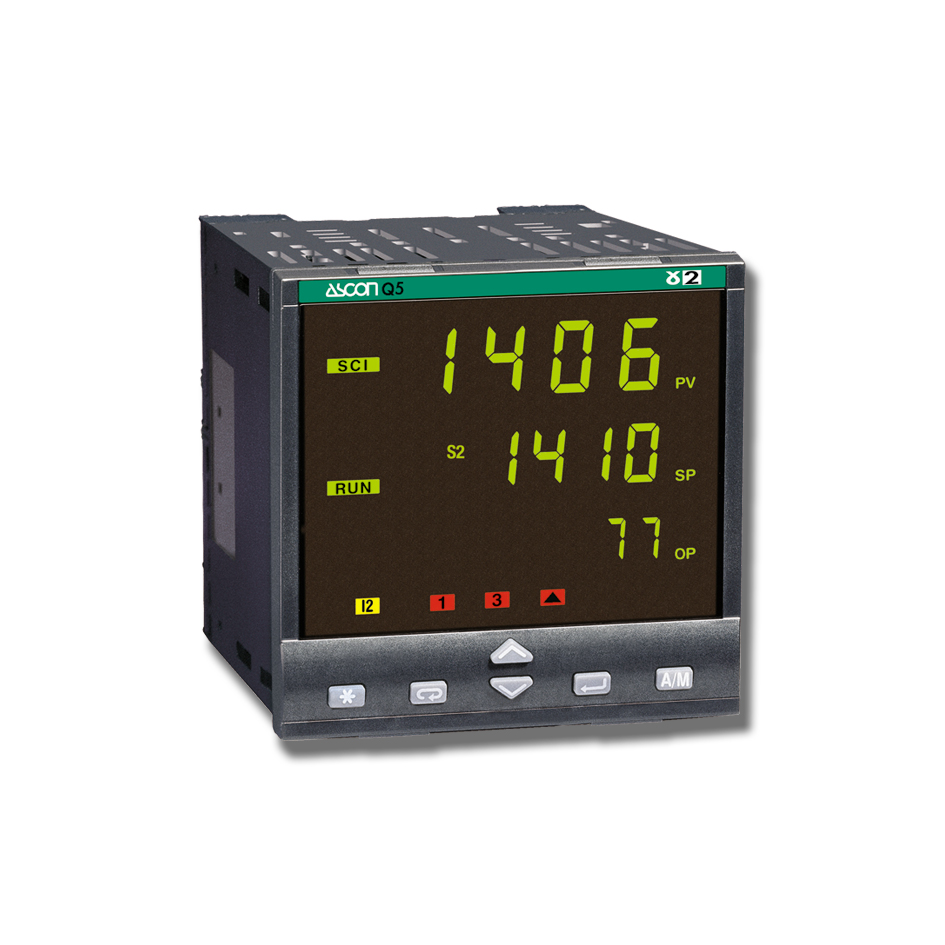

Q5
Process controller with PROFIBUS DP and Modbus Master/Slave
Technical specifications
Additional information
| Function | |
|---|---|
| Dimensions | |
| Display | |
| Power supply | |
| Inputs | 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Delta T Pt100, Pt100, Thermocouple, Universal |
| Number of outputs | |
| Outputs | 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor |
| Digital inputs | |
| Auxiliary input | |
| Number of programs / segments | 1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments |
| Retransmission output | |
| Interface | Profibus, RS 232 Modbus Slave, RS 485 Modbus Master, RS 485 Modbus Slave |
| Special functions | Mathematical functions, Soft start, Transmitter power supply |
| Control | Double action with 2 PID, ON/OFF and PID single or double action, Servomotor |
| Extractability | |
| Mathematical package | |
| Profibus DP | |
| Certifications |
