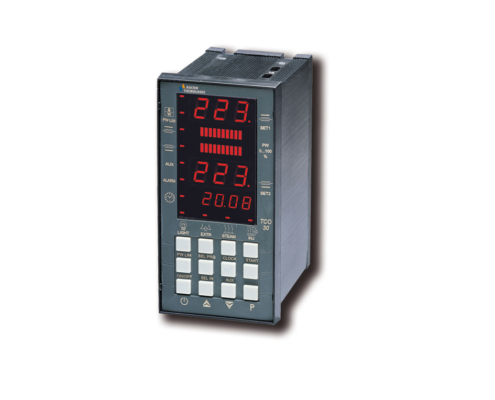

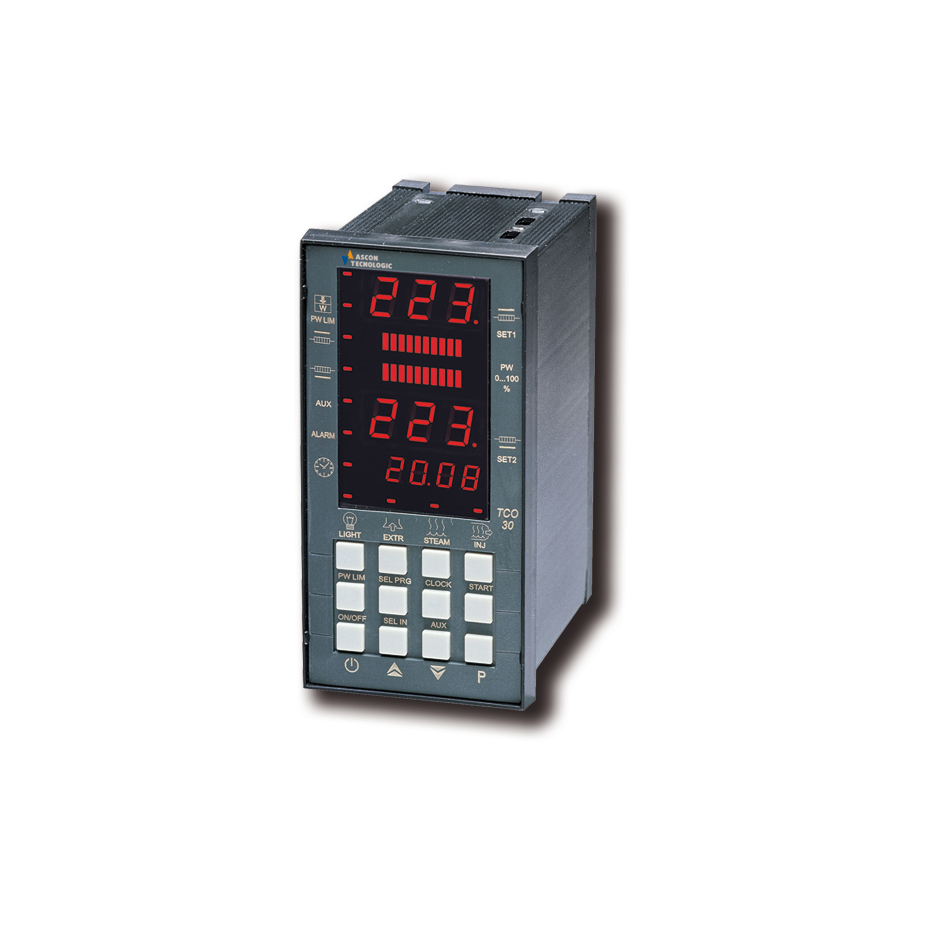

TCO30

Controller for cooking ovens

This is the ideal instrument for the bakery sector as it is able to separately manage the “ceiling” and “floor” with the relative partitions, but also the lighting, the extractor, the steamer and the steam injection.

It also provides for the storage of 8 different cooking programs and can have up to 7 relay outputs, up to 4 inputs for thermocouples and 3 configurable digital inputs.

Thanks to the internal clock it is possible to program the oven automatic switch on at the desired time, the cooking time and also the automatic switch off.

Finally, it offers the possibility of having an RS485 serial communication interface.

Applications: Bakery ovens (top/floor)

Technical specifications Documentation

Technical specifications

Additional information

Additional information

Function	Controller
Dimensions	72 x 144 mm
Display	3 display with 3+3+4 digit
Power supply	230 Vac
Inputs	TC J-K + 3 digital
Number of outputs	7
Control	Motorized actuators, ON/OFF
Communication	RS 485 isolated
Programmer	Yes
Certifications	CE

Documentation

Manual

Datasheet

Short form HORECA

CE declaration of conformity

IT/EN/FR/DE
