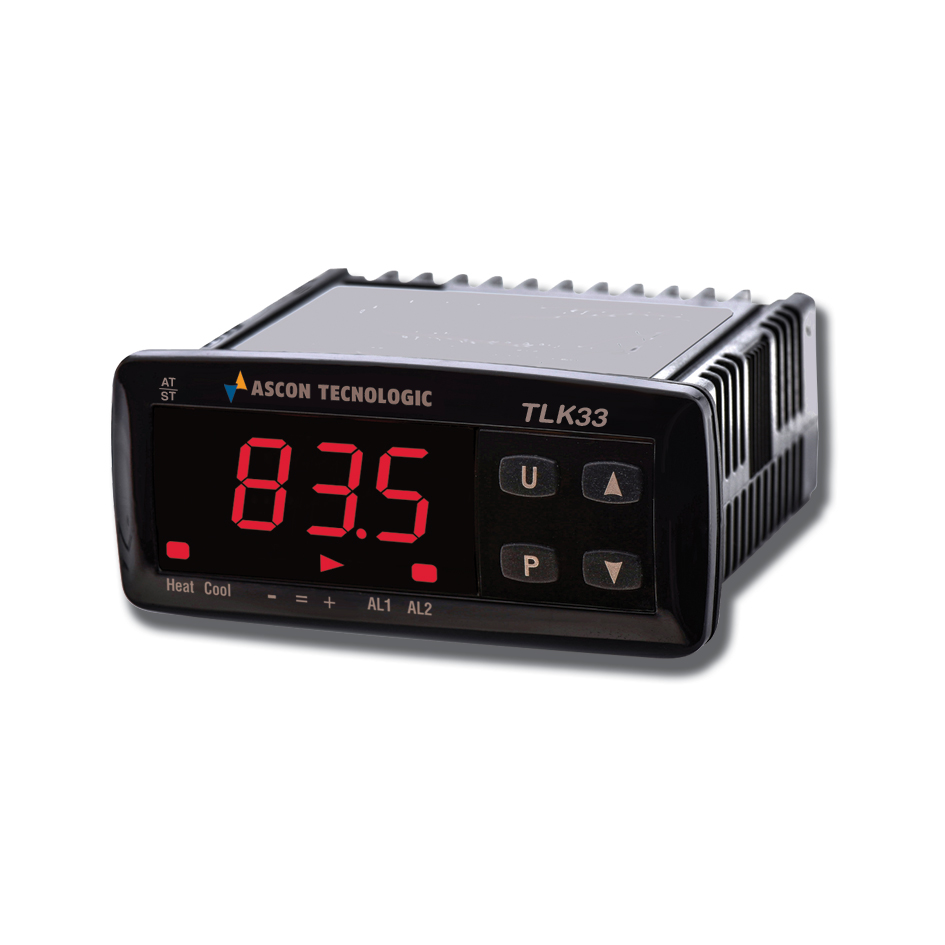

TLK33

Peltier cell controller

There are many ways to cool or heat surfaces, including the use of Peltier cells, layers of different semiconductors that allow heat to be absorbed on one side and released on the other.

The fields of application are many: from the storage and transport of biological samples, to the cooling of optical sensors, in lasers, in small portable car refrigerators, in mini cold water dispensers, in the temperature control of electrical panels and so on.

The TLK33 controller is specifically designed to directly control Peltier cells with currents up to 7A.

Applications: Peltier cells Wine-cellars Thermoscanner

Technical specifications Documentation

Technical specifications

Additional information

Additional information

Function	Controller
Dimensions	78 x 35 mm
Display	1 display with 4 digit
Power supply	12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac
Inputs	0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple
Number of outputs	1, 2, 3, 4
Outputs	Control of peltier cells, Relay and/or SSR control
Digital inputs	1, 2
Interface	RS 485 Modbus Slave, TTL Modbus
Special functions	Soft start, Transmitter power supply
Control	ON/OFF and PID single or double action
Extractability	Not extractable, With fix terminal block
Certifications	CE, UL

Documentation

Manual

Quick guide

Protocollo

What is a Peltier cell

Certificazione UL
