K30

Mini-programmer controller with independent timer

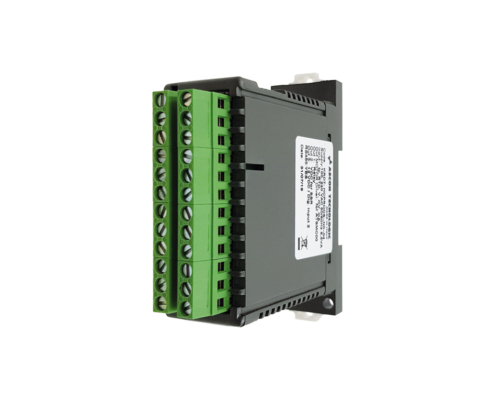

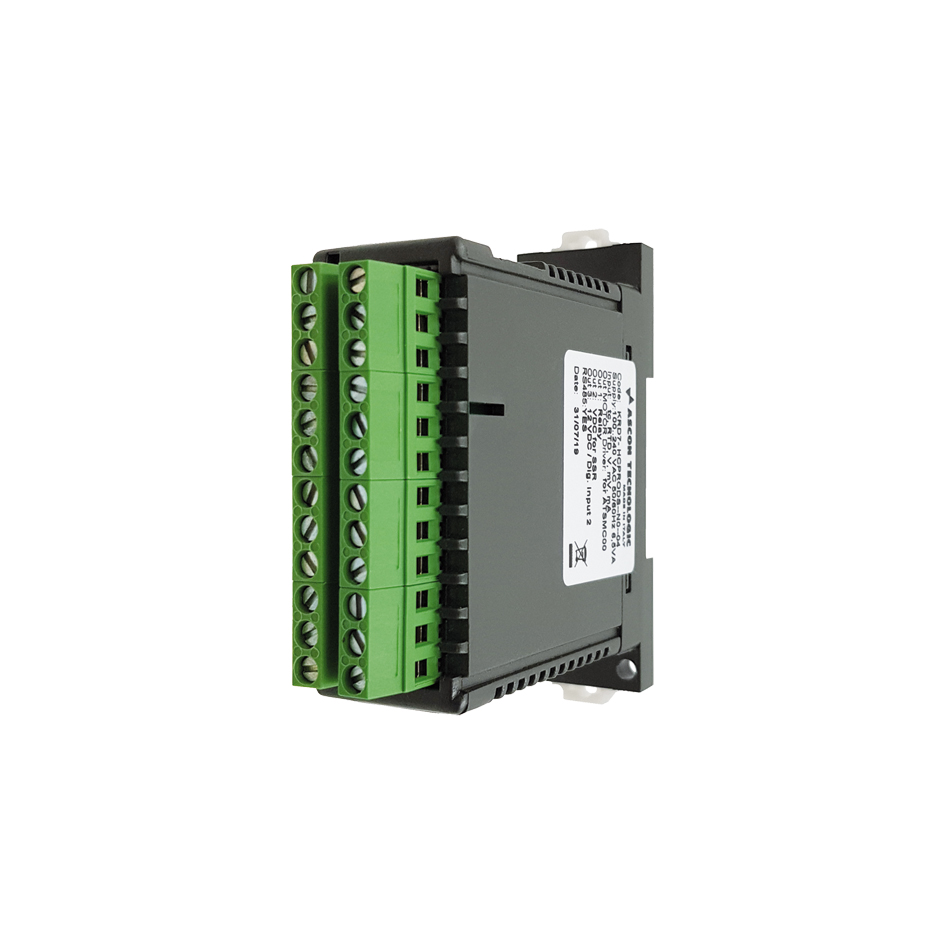

This model is designed to be mounted inside a panel, on a DIN rail and can be connected to an external operator panel. Programming can therefore be carried out simply via the external HMI keyboard or via programming devices, or via PC.

The serial communicatio0n on board, with Modbus protocol, allows integration with control, supervision and monitoring systems.

Applications: Incubators Bakery ovens (top/floor)Dental photopolymerizers Gluing machines, edge banding machines Textile/bookbinding machinery Ultrasonic parts washer Pasta cookers and deep fryers

Technical specifications Documentation

Technical specifications

Additional information

Additional information

Function	Programmer, Controller
Dimensions	DIN rail mounting
Power supply	24 Vac/Vdc, 100… 240 Vac
Inputs	0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple
Number of outputs	1, 2, 3, 4, 5
Outputs	Relay and/or SSR control
Digital inputs	1, 2
Independent timer	Yes
Number of programs / segments	1 program with 8 segments
Interface	RS 485 Modbus Slave, TTL Modbus
Special functions	Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter
Control	ON/OFF and PID single or double action
Extractability	Not extractable, With fix terminal block, With removable terminal block
Certifications	CE, UL

Documentation

Manual

Protocol

Datasheet

CE declaration of conformity

IT/EN/FR/DE

Certificazione UL
