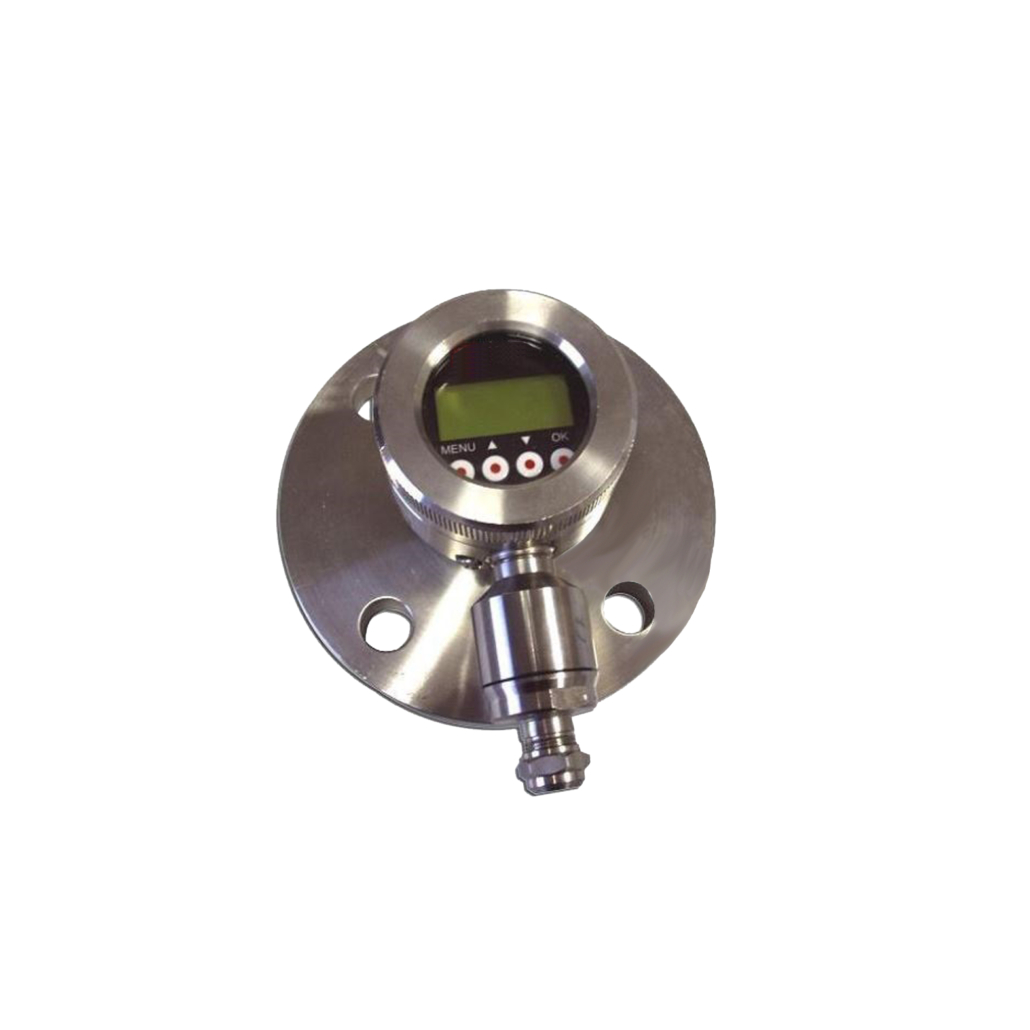

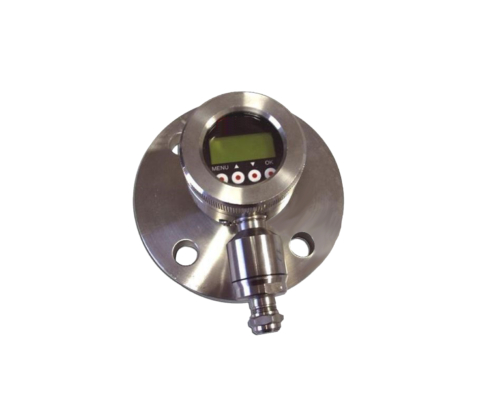

TPT79

Additional information

Power supply	12… 35 Vdc
Outputs	4…20mA two-wire, 21,5 mA max.
Range	-1…400 bar (ceramic sensor), -1…1000 bar (piezoresistive)
Thread	1/2 "G, 1/2" NPT threads, flange Ø79, others on request (ceramic sensor), 1/2” G, 1/2” NPT, 1/2” G sep. M44, 1/2” NPT sep. M44, 1/2” G sep. M75, 1/2” NPT sep. M75, 1/2” G facing memb., 1” G facing memb., 1”1/2 G facing memb., 2” G facing memb., Swivel DN 25, Swivel DN 40, Swivel DN 50, Triclamp 1 "1/2, Triclamp 2", Triclamp 2 "1/2 SO flange, Ø 79 flange, others on request (piezoresistive sensor)
Operating temperature/humidity	-40…80°C, 0… 98% UR
Certifications	ATEX
