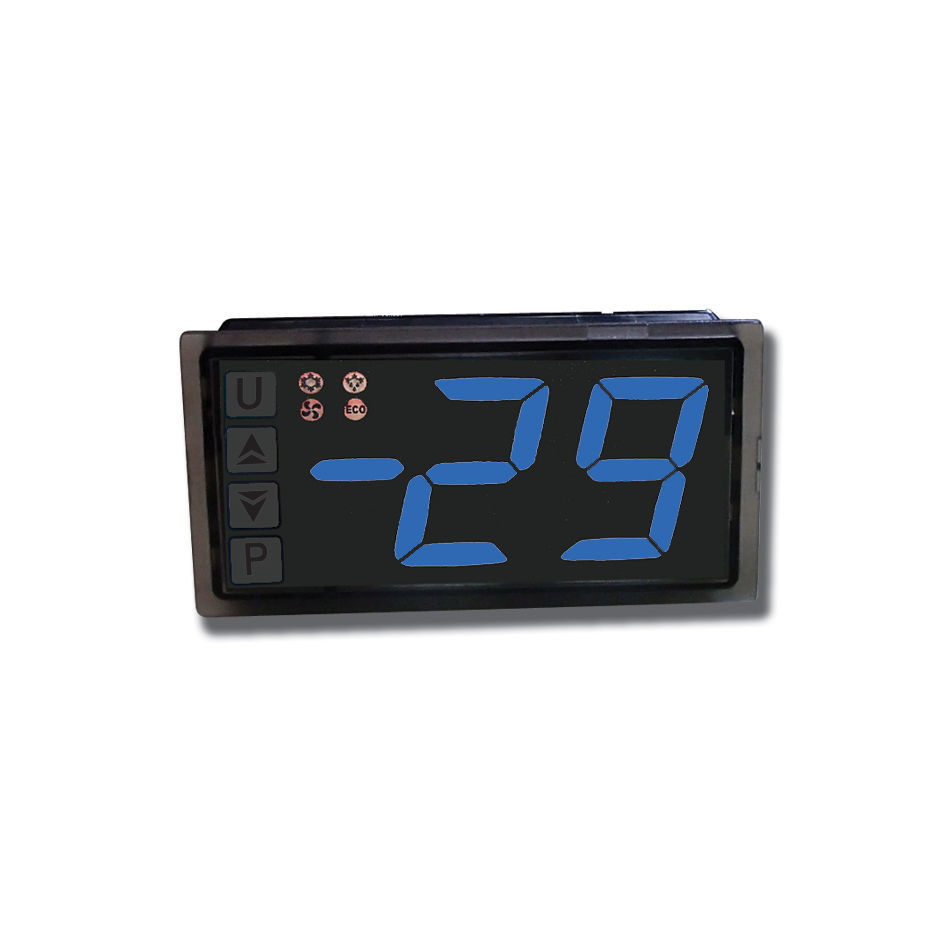

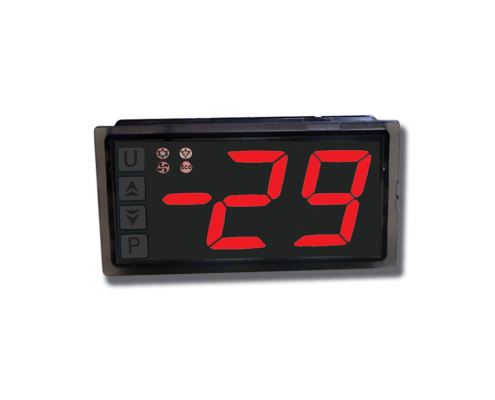

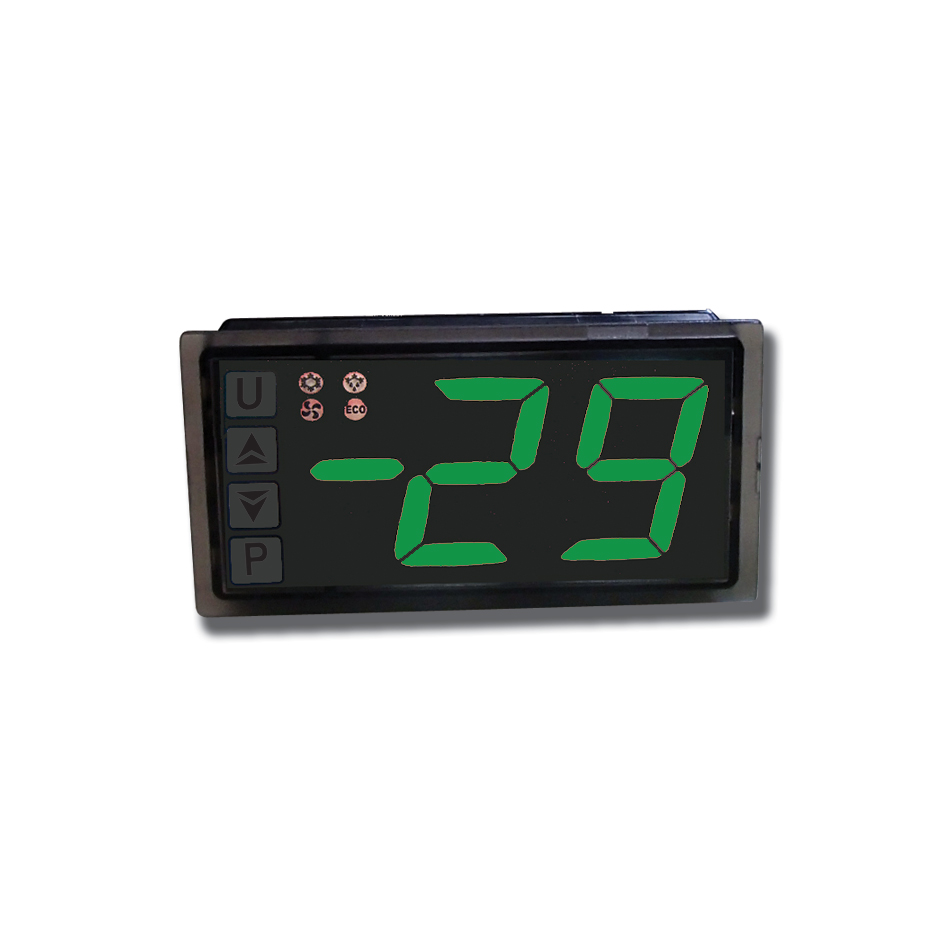

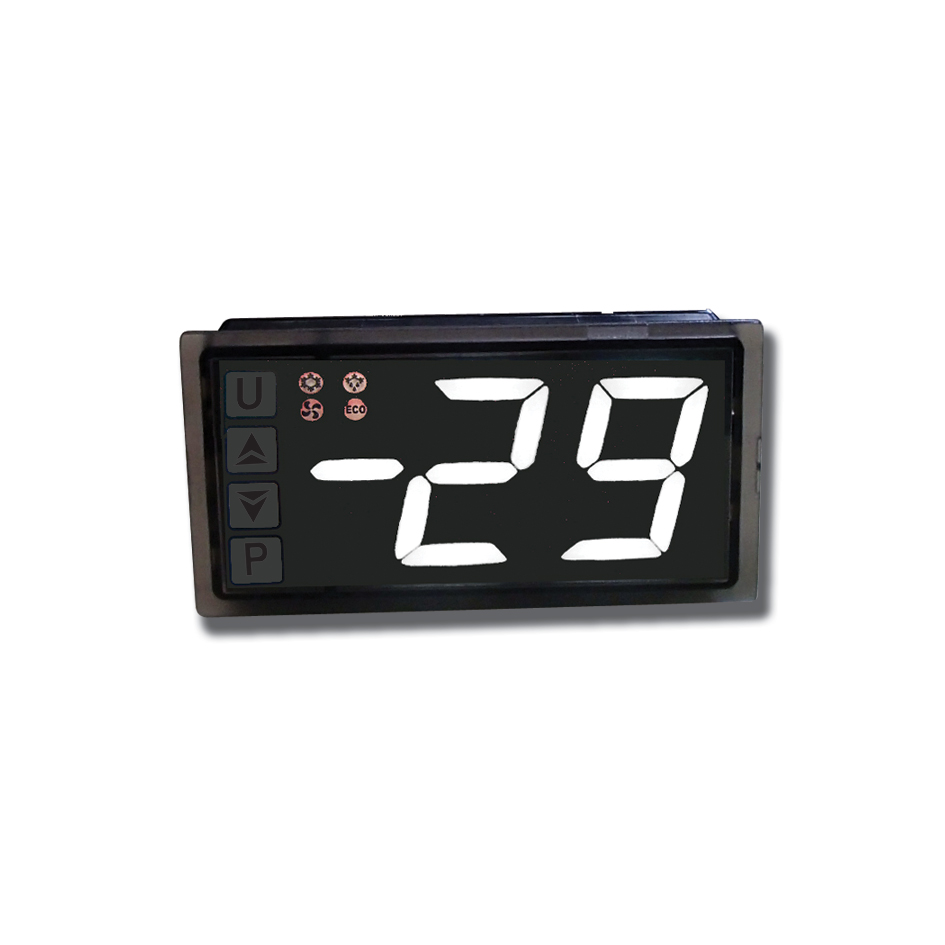

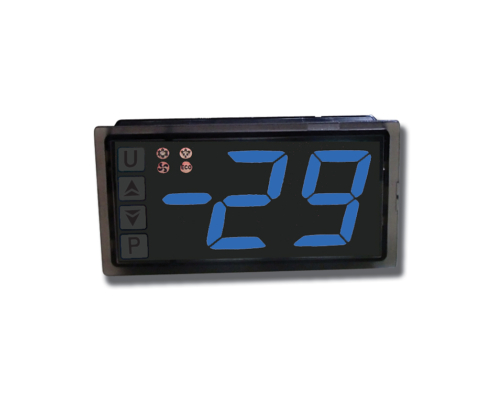

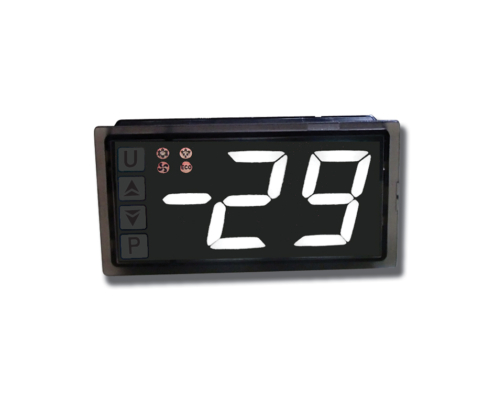

P03S
Operator panel to be used with B05
- Dimensions: 96 x 50 mm, depth 22.5 mm
- Device to be incorporated by flush-in panel (max. Thickness 2 mm) in 90 x 44 mm hole
- Connections: removable mini connectors
- P03S/P05S – B05 connection: 3 m max via cable with removable mini connectors
- 1 Digital input for free voltage contacts
Technical specifications
Additional information
| Function | |
|---|---|
| Dimensions | |
| Display | |
| Power supply | |
| Inputs | |
| Number of outputs | |
| Outputs | |
| Digital inputs | |
| Interface | |
| Special functions | Acoustic alarm (buzzer), Duty cycle function, Energy saving, Remote display (TVR) |
| Control | |
| Extractability | |
| Analogue inputs | |
| Defrost control | At intervals with electric heating or hot gas / reverse cycle, At intervals with for compressor stop |
| Certifications |
