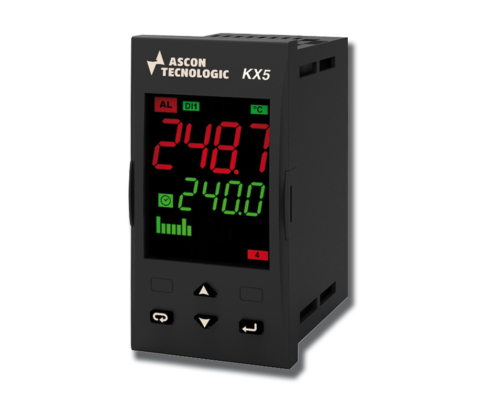

KX5
Controller-programmer with 96 segments divisible into 8 programs
Controller-programmer with 96 segments divisible into 8 programs
Let us organize your “programs”!
The KUBE series programmers are equipped with many interesting functions, for example:
• “Segment recovery” + “elapsed time recovery”, ie in the event of a power failure, program execution can restart from the point where it was interrupted (accuracy 1 minute)
• Possibility to manage sequences up to 4 programs even with different time base (h/min-min/s)
• Up to 999 Repetitions
Technical specifications
Additional information
Function | |
---|---|
Dimensions | |
Display | |
Power supply | |
Inputs | 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal |
Number of outputs | |
Outputs | |
Digital inputs | |
Number of programs / segments | 1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments, 8 programs with 12 segments |
Retransmission output | |
Interface | |
Special functions | Digital retransmission, ON time, Power on delay, Soft start, Transmitter power supply, User calibration |
Control | |
Extractability | Not extractable, With fix terminal block, With removable terminal block |
Certifications |
