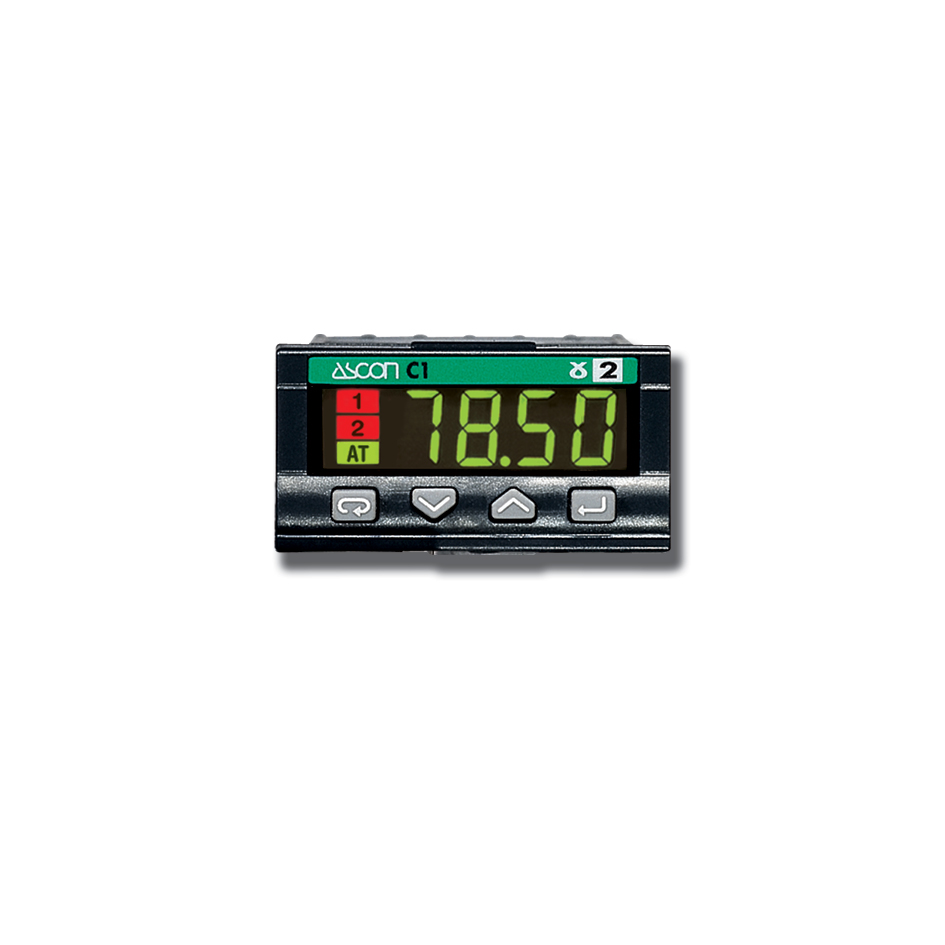

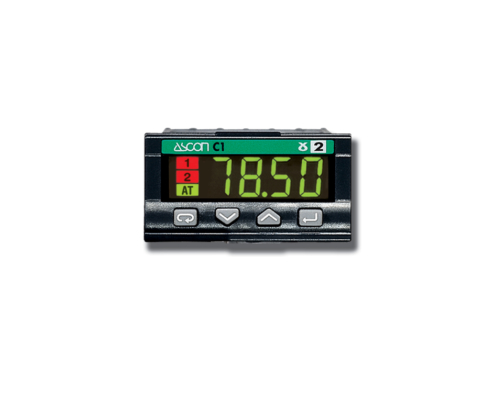

C1

Controller, indicator, transmitter

Small, simple and complete.

Easy to configure and with truly simplified operation, the smallest line of the gammadue® series concentrates the functions of the temperature controller-indicator-transmitter in a very small space, without neglecting the typical characteristics of more complex instruments such as the automatic search for adjustment parameters, serial communication, continuous retransmission output, “custom” linearization, transmitter power supply and IP65 front protection.

Shop now

Technical specifications Documentation

Technical specifications

Additional information

Additional information

Function	Indicator, Transmitter, Controller
Dimensions	48 x 24 mm, DIN rail mounting
Display	1 display with 4 digit
Power supply	24 Vac/Vdc, 100… 240 Vac
Inputs	0/4… 20 mA, Delta T Pt100, Pt100, Thermocouple, Universal
Number of outputs	1, 2, 3
Outputs	Relay and/or SSR control
Retransmission output	0/4… 20 mA
Interface	RS 485 Modbus Slave
Special functions	Transmitter power supply
Control	ON/OFF and PID single or double action
Extractability	By the front
Certifications	CE, UL

Documentation

Manual

Protocol

Datasheet

Commercial bulletin

Technical Bulletin

CE declaration of conformity

IT/EN/FR/DE

Certificazione UL
